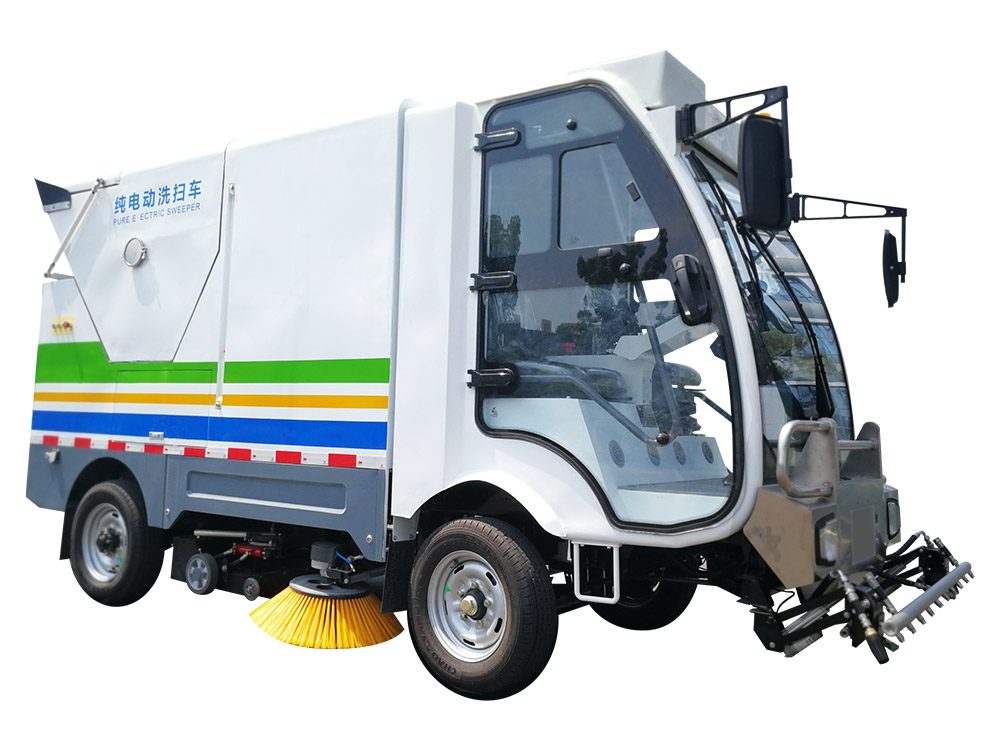

Ruiqing S26 pure electric road cleaning vehicle is mainly used for general cleaning of main roads and auxiliary roads. It integrates the functions of cleaning, high-pressure washing and sewage recovery. It can quickly clean fallen leaves, stones, sand dust and white garbage. Garbage and sewage are collected synchronously and dumped at a high position.
◆ chassis: special steel plate for truck, integral riveted chassis design for automobile with longitudinal and transverse beams of frame, high strength and strong bearing capacity
◆ body: fully enclosed cab, fully transparent glass on three sides, front stainless steel bumper, high-quality and high-strength metal body, good line of sight, safe and beautiful
◆ battery: 72V / 450ah lithium battery pack

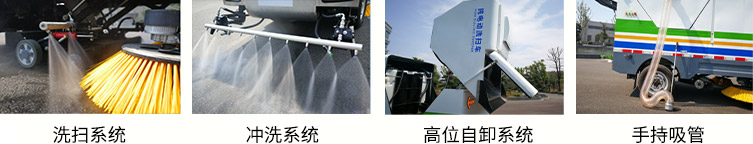

◆ flushing mechanism: Italian imported high-pressure water pump, front high-pressure flushing and multi angle flushing device, side flushing, hand-held spray gun and other functions
◆ cleaning system: pure suction type, which adopts the layout of "middle 650mm double cleaning disc + middle 1200mm wide suction nozzle + U-shaped spray bar", and is equipped with a detachable hand-held straw with a length of 4m, with high cleaning rate and fast operation speed

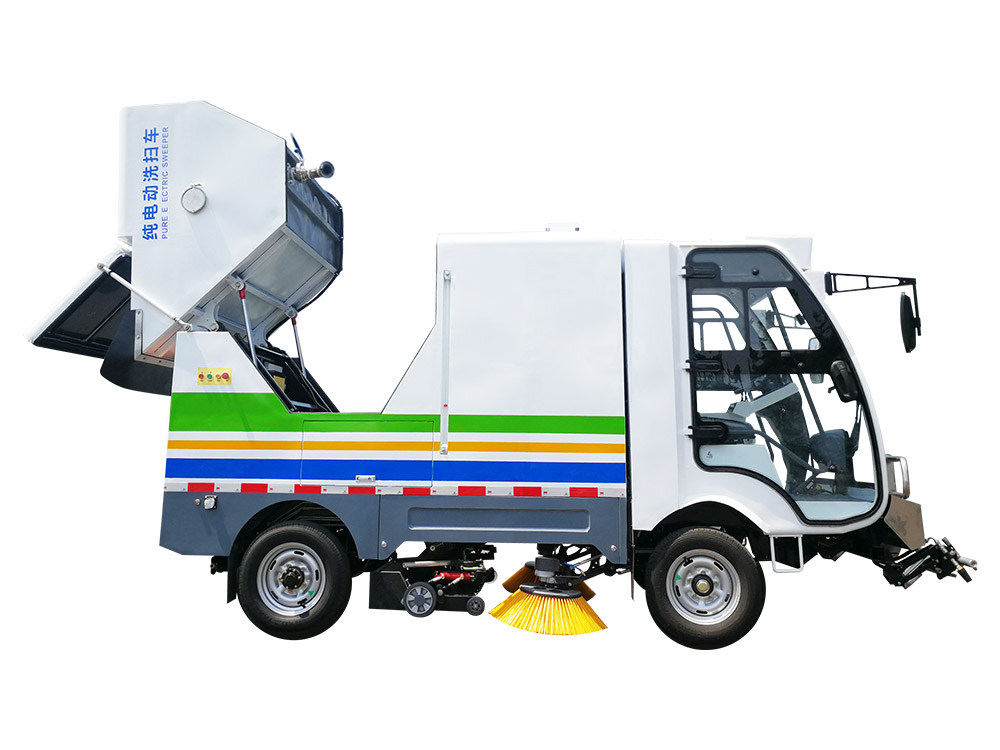

◆ waste dumping method: high-level turnover unloading, with a height greater than 1350mm
◆ driving type: equipped with LCD control screen, reversing image and cooling and heating air conditioner; The soft bag made of advanced simulated leather fabric is beautiful and heat-insulating
◆ seat: cushion seat, with gravity sensing device, strong safety
◆ steering system: electric circulating ball steering system
| Parameters | Ruiqing S26 |
| Work efficiency | ≥20000㎡/h |
| Voltage / drive rating | 72V/7.5KW |
| Edge brush diameter | 650mm*2 |
| Continuous working time | ≥5h |
| Range | ≥100km |
| Maximum travel speed | 35 km/h |
| Cleaning pressure | 8Mpa |
| Cleaning flow | 27L/min |
| Water tank capacity | 1100L |
| Dustbin capacity | 650（High level dump）L |
| Maximum inhaled particles | ＞50mm（Garbage density is 2g/cm3） |
| Turning radius | ≤5m |
| Dimensions | 4200×1420×2400mm |
| Net weight | 2400kg |
| Number of passengers allowed in the cab | 2 people |
